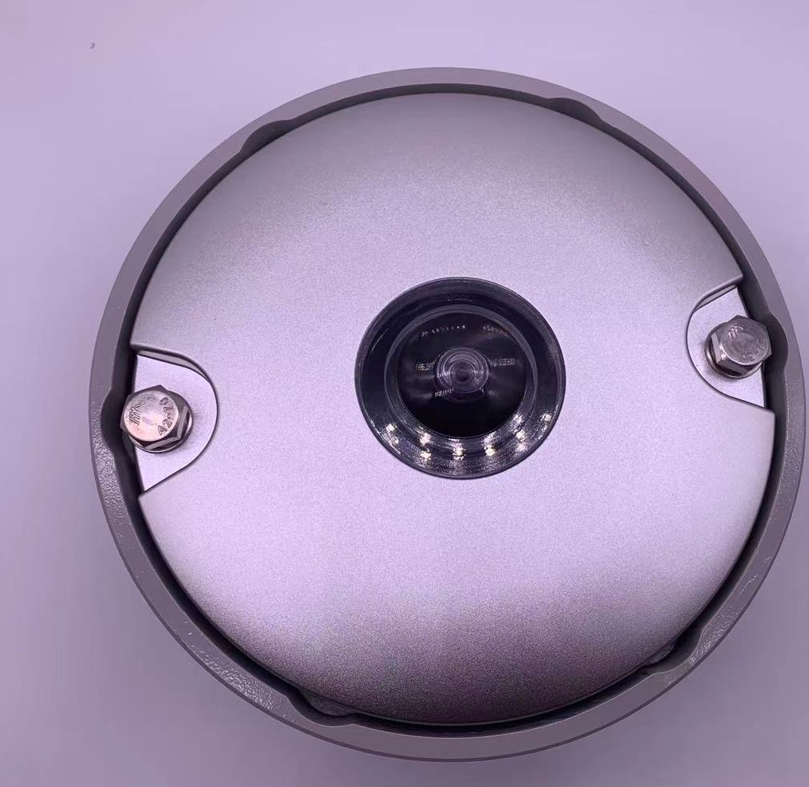

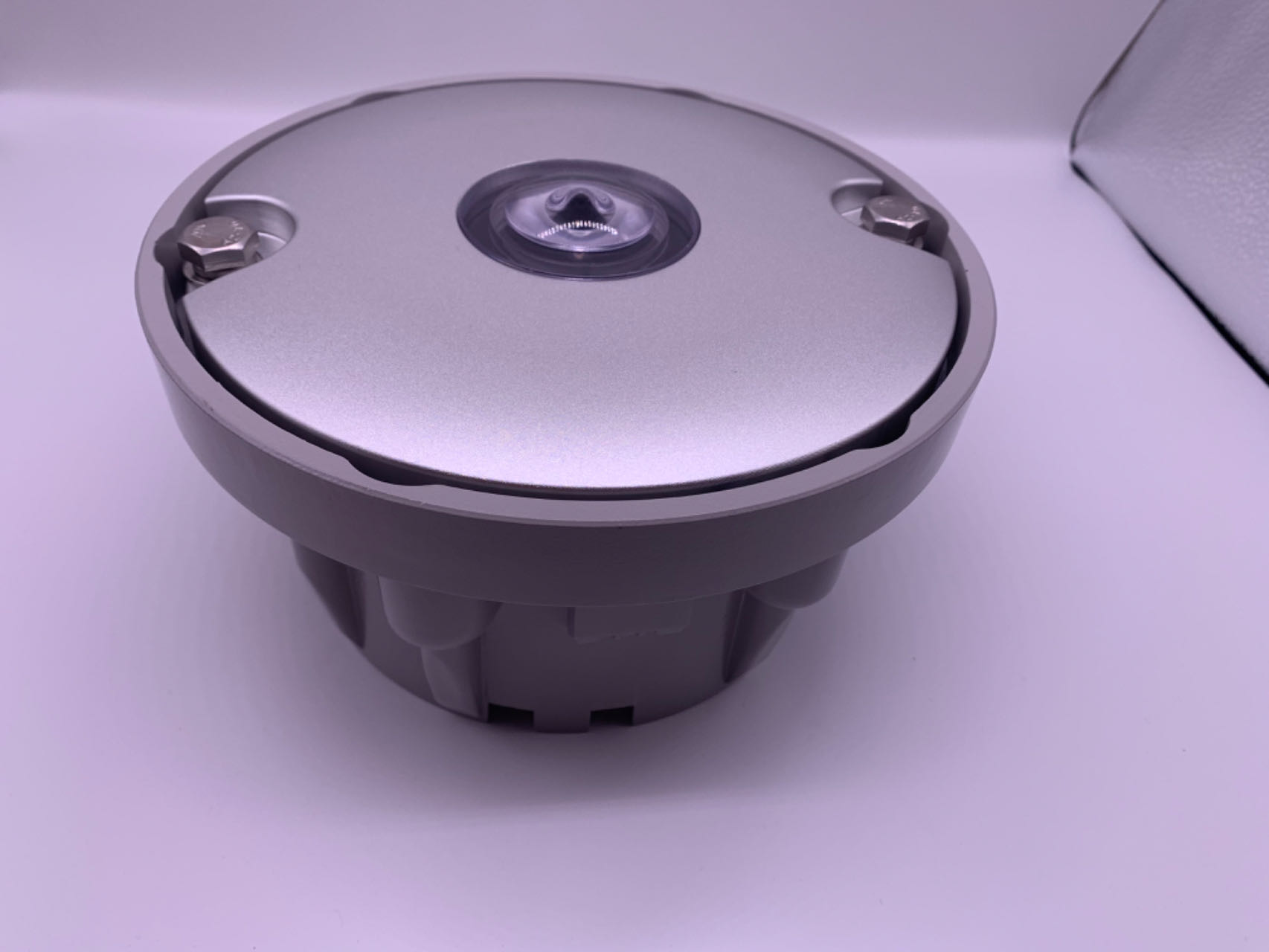

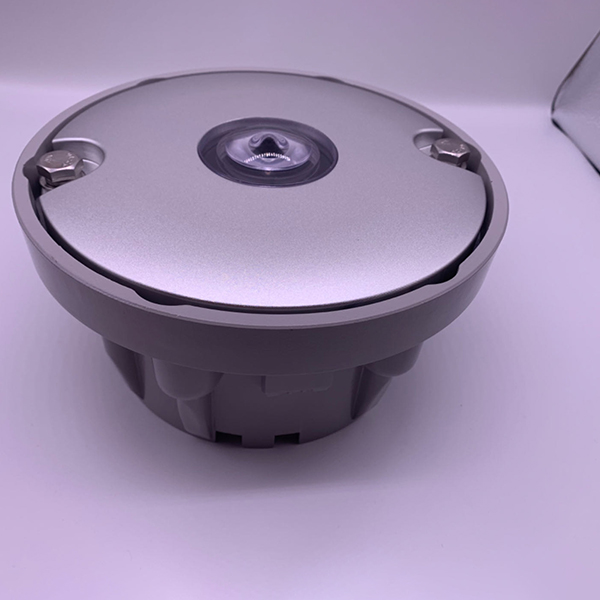

Helipad Flush Mounted perimeter light (heliport dimmable TLOF lights）
Model# SPL-100
Helipad Flush Mounted perimeter light /approach lighting/heliport dimmable TLOF lights

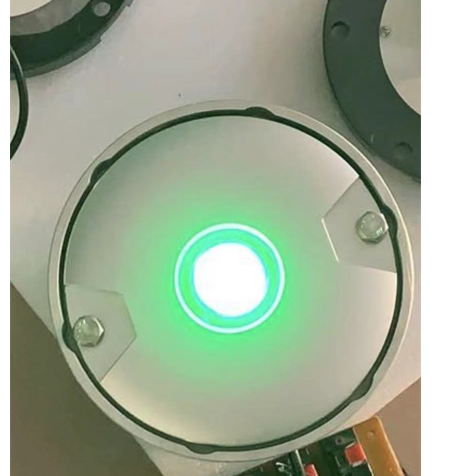

Helipad Flush perimeter light with Dimmable and Infrared fuction is used for night operation . To use
omnidirectional green perimeter light lighten the heliport
TLOF/FATO edge area .
Elevate aviation safety with our heliport dimmable TLOF lights, engineered to optimize visibility in dynamic conditions. These FAA-compliant LED units feature 0-100% stepless dimming, automatically adjusting brightness via ambient light sensors or remote control to eliminate pilot glare during night medevac operations.
For seamless integration into high-traffic zones, the Helipad Flush Mounted perimeter light redefines durability with a ultra-low-profile stainless-steel housing, rated IP68 for submersion and IK10 impact resistance. Its prismatic polycarbonate lens ensures 360° omnidirectional guidance while withstanding helicopter rotor downwash up to 160 knots.
Pilots can easily determine the perimeter of the helipad. The LED Flushmount Perimeter Lights, spaced at intervals of not more than 3 m, should be fitted around the perimeter of the landing area of the helipad or helideck. For any application, the LED Flushmount Perimeter Light will not exceed a height of 25 mm above the surface. The LED Flushmount Perimeter Light is made for flushmount facilities. When the LED Flushmount Perimeter Light is used on the surface, a seating pot will be needed to mount the LED Flushmount Perimeter Light correctly.
TLOF lighting system always consist of elevated/flush perimeter lights and floodlighting
.
Custom solutions is available like operation voltage,color;
Switchable dual colors;variable brightness function available .
Helipad Flush perimeter light with Dimmable and Infrared fuction
heliport dimmable TLOF lights--Infrared features can be customized
The Flush Mounted Perimeter Light can customize dimming features. Three level dimming and will use 5 cores wire.
1. Black wire +Ground wire + Neutral wire When those three wires are connected can be realized -10% Dimming
2. Grey wire+Ground wire + Neutral wire When those three wires are connected can be realized -30% Dimming
3. Red wire +Ground wire + Neutral wire When those three wires are connected can be realized-100% Dimming
Helipad Flush Mounted perimeter light /heliport dimmable TLOF lights Features
• Casting aluminum alloy strong body,the cans and cans inside with anti-corrosion and UV coating .
• Diameter standard 8inch/20 .32cm ,bolt circle 7 .25inch/18 .42cm .
• Overall diameter with base can 22cm .
• Rating IP68 .
• Helipad Flush perimeter light with Dimmable and Infrared fuction Tempered Glass lens very good impact resistance and light beam transmission .
• Light source using integrated LED with an expectancy lifespan 100 ,000 hours .
• Optical designed lens produce friendly and ICAO compliant optical beam .
• AC85~265V operation voltage applicable .
• Die-casting aluminum base can integrated in the lamp,no need additional cost.
• Helipad Flush perimeter light with Dimmable and Infrared fuction Option for 2 ways cable out from side easy for cable connection .
•The led driver , connector and the wiring be housed in an IP rated box and be attached to the bottom of the light for water-proof.
Helipad Flush perimeter light with Dimmable and Infrared fuction Application
• Surface Heliports
• Elevated Heliports
Helipad Flush perimeter light with Dimmable Technical Parameter
heliport dimmable TLOF lights Characteristics |
Light source | High Power Integrated LED |
Color | Green/White/Yellow |
Lifespan of LED | 100 ,000 hours |
Light intensity | >30cd , Photometric ICAO compliant |
Electrical Characteristics |
Operating Mode | AC 85V~265V; |
Power Consumption | 9- 10W |
Physical Characteristics |
Body Casting Material | Casting Aluminum and cans and cans inside with anti-corrosion and UV coating . |
Base Can Casting | Default integrated in the lamp, no need additional purchase |
Lens Material | Glass lenses stabilized,good impact resistance |
Lens above the grade | After installation the lens is 15mm above the grade |
Overall Dimension(mm) | φ220mm×158mm |
Mounting&Cable | Grouting/ Cable can be customized one “ in” one “out” |
Weight(kg) | 7.8kg |
Environmental Factors&Others |
Ingress Grade | IP68 |
Temperature Range | -40C to 60C |
Wind Speed | 80m/s |
Quality Assurance | ISO9001:2008 |
SPL with more than 10 years of design and application experience of helipad lighting and obstruction lights in China.
We insist on providing the most up-to-date and cost-effective helipad lighting options and high quality signal aviation obstruction lights available to our customers.
Our products had been shipped to UK, Dubai ,Saudi Arabia, Mexico, Singpore, Malaysia etc those countries. Our customers have given positive response to our product and service.
All finished products will have full test and inspected one by one before packing.
All products will have well packing before shipping and will have 3 years warranty .
