SPL-043
HELIPORT Flood LIGHTS
Our advanced flood lighting systems are engineered to address diverse operational needs across aviation environments. The Heliport Flood Light delivers precision illumination for permanent helipads on hospital rooftops, offshore platforms, and urban terminals, ensuring FAA/ICAO-compliant visibility in fog, rain, or snow. For critical approach zones, the Elevated mounted illuminated TLOF/FATO area system provides high-intensity coverage of Touchdown and Lift-off Areas (TLOF) and Final Approach/Takeoff Areas (FATO), with adjustable beam angles to prevent pilot glare during night operations.
The Airport Flood Light extends our expertise to large-scale aerodromes, offering runway-grade luminosity for apron operations, hangar access lanes, and emergency response zones. Its ruggedized design withstands jet blast and de-icing chemicals while maintaining energy efficiency. For rapid deployment scenarios, the Portable Flood Light for Ground Helipad serves as a turnkey solution for disaster relief, military forward bases, or temporary medevac sites. Featuring solar-battery hybrid power and quick-assembly tripods, it ensures 360° ground illumination within minutes, even in remote terrains.
All systems integrate adaptive dimming controls for glare reduction and anti-icing coatings for Arctic operations. Whether enhancing safety at permanent hubs, optimizing tactical mobility for emergency teams, or upgrading aging airport infrastructure, our solutions bridge the gap between regulatory compliance and real-world operational flexibility.
Elevated mounted illumintaed TLOF/FATO area.
Applications:
· Elevated mounted illumintaed TLOF/FATO area.
· Winching areas.
· Parking areas.
Heliport Flood light Compliant:
· ICAO Annex 14, Volume II, 4th Edition, July,2013
· FAA AC150/5390-2C
Why SPL-043
· Heliport Flood light-Lens hood reduce the glare to pilots.
· Fixture can be used with 100V~250V AC, 50Hz or 60Hz.
· Low profile, lowest adjustable less than 20cm in height.
· Cost effective solutions.
· Heliport Flood light--IP65.

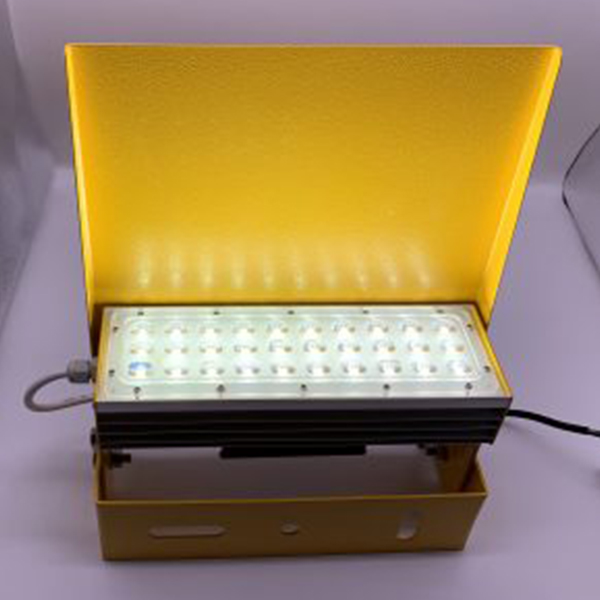

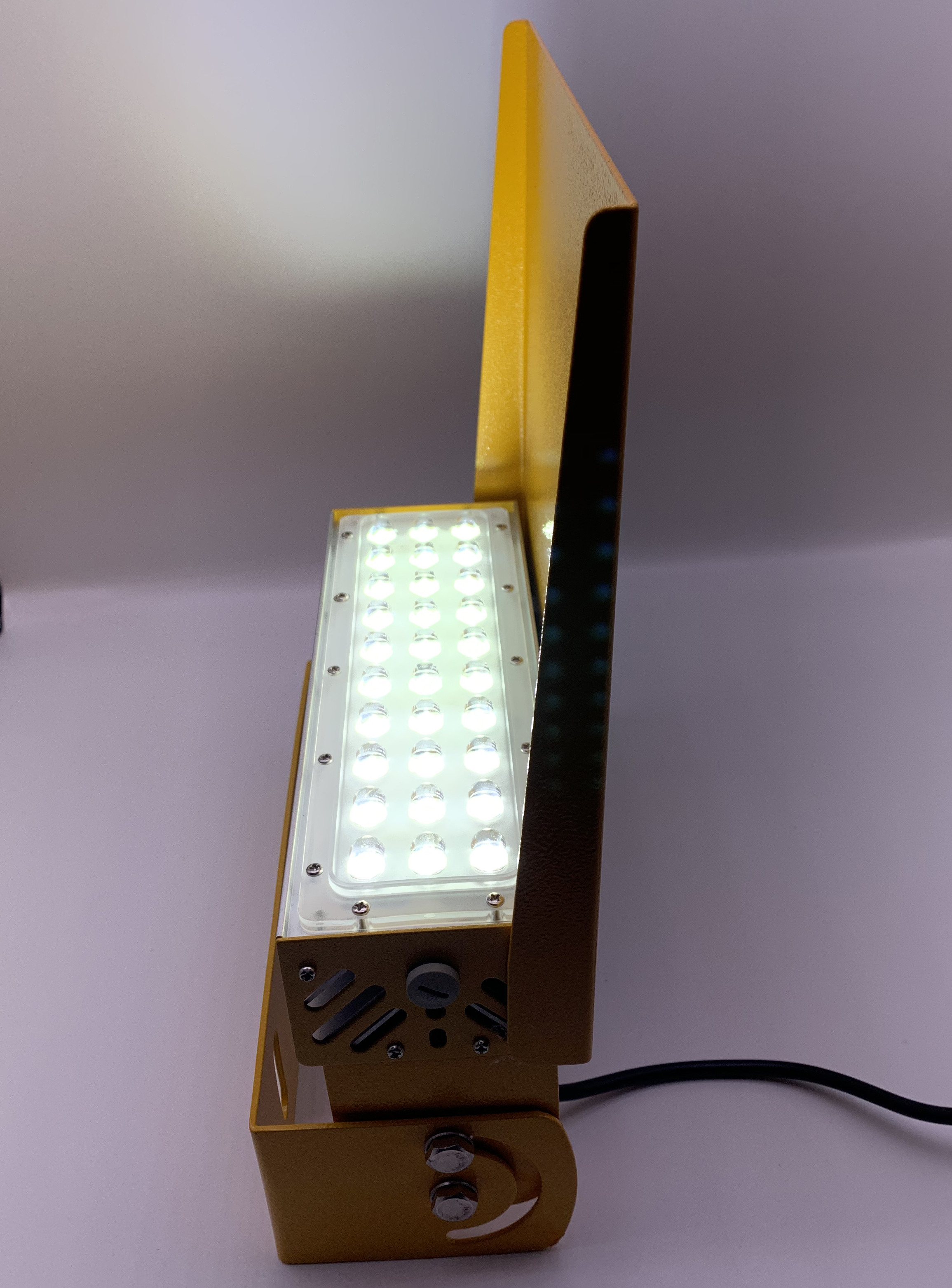

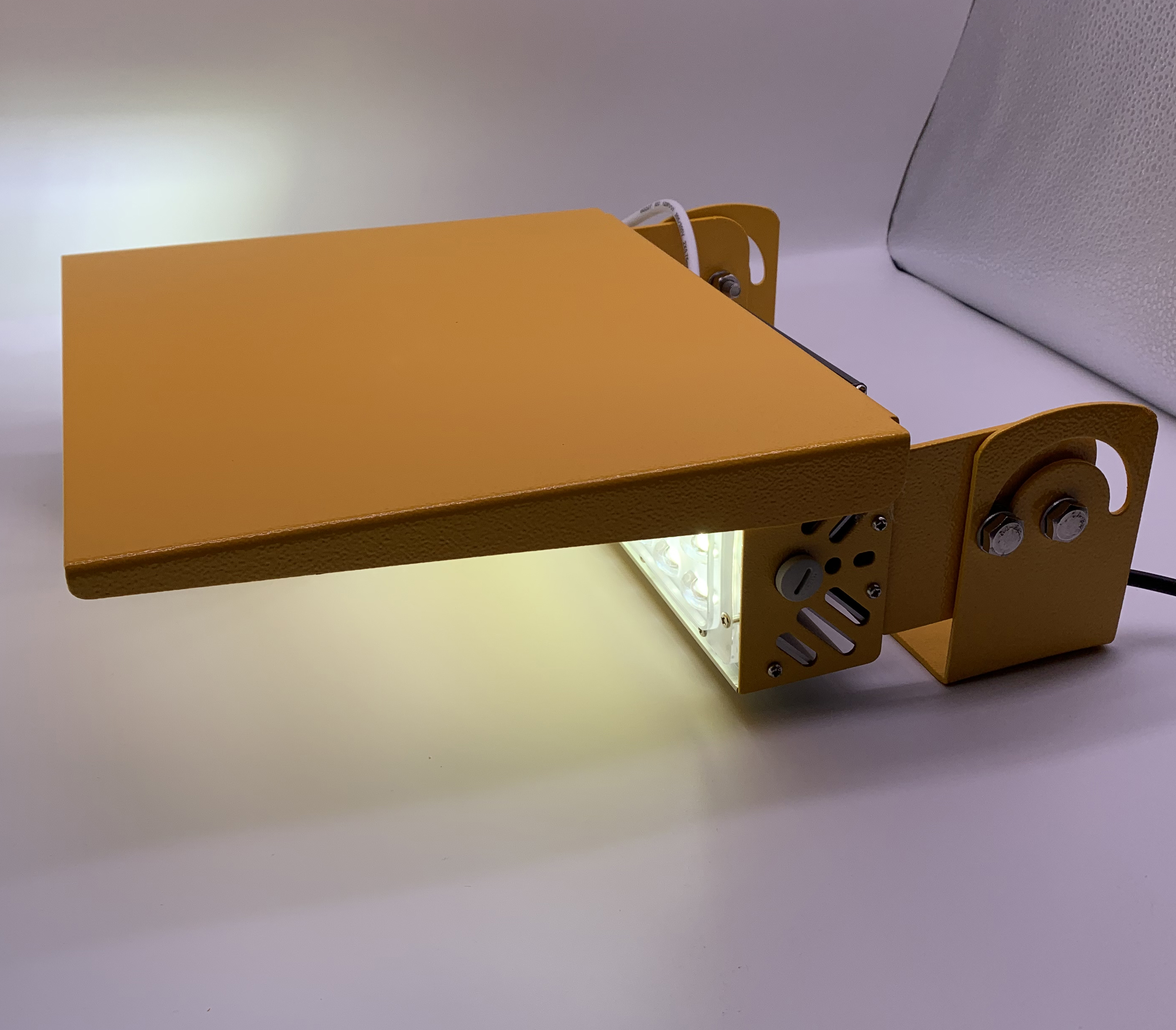

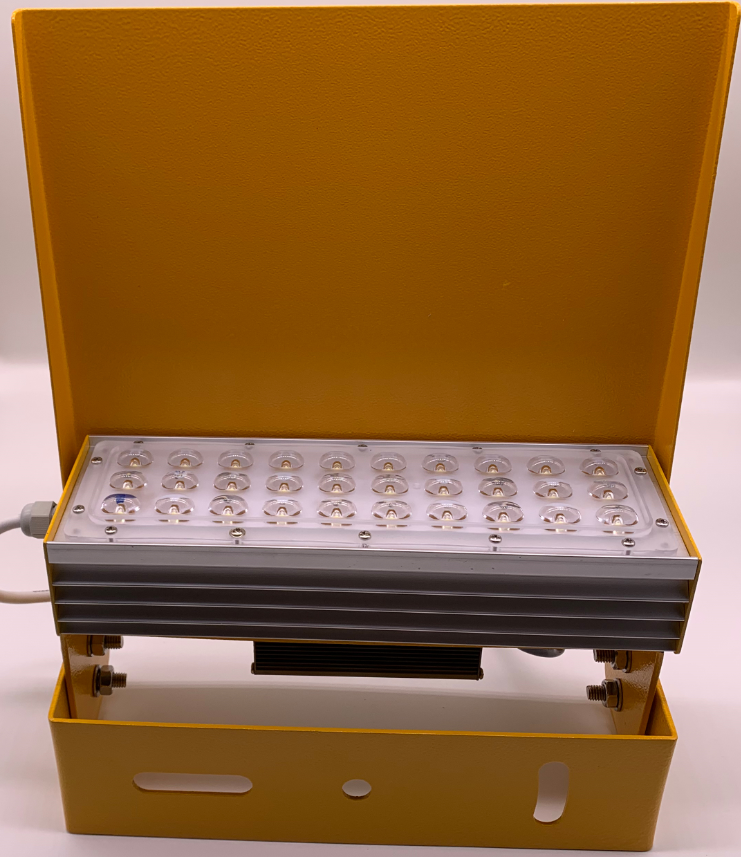

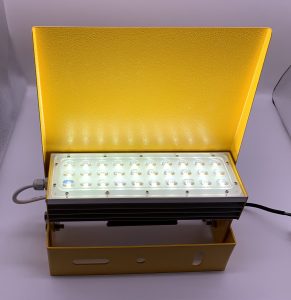

Heliport Flood light-Elevated mounted illumintaed TLOF/FATO area.
LED &Electrical Characteristics:
· Color temperature 6000K.
· LED light source 50,000 hours life
· Luminous flux 2600Lm.
· Power by 100V to 250V AC, 50Hz or 60 Hz.
50 W power
Physical Characteristics:
· Steel housing made.
· Yellow powder coating finish.
· Impact resistant polycarbonate lens cover.
· Heliport Flood light Lay size: 40cm×28.1cm×8.5cm.(15.7’’×11’’×3.3’’)
· 17cm-M12×2 for mounting details.
· 3.5KG net weight.
Environmental:
· Operating at -40°C to 60 °C.
· Wind speed: 80m/s.
Why Us
Professional Manufacture of Navigational Aids Products
SPL with more than 10 years of design and application experience of helipad lighting and obstruction lights in China.
We insist on providing the most up-to-date and cost-effective helipad lighting options and with high quality signal aviation obstruction lights available to our customers.
Advantages
Cost effective, energy efficient Helipad Lighting and aviation obstruction lights solutions.
Designed ,Manufactured. We do it All.
Self-contained solar powered units for ease of installation.
Optional control systems available.
100% Testing and Inspection .Fully packed with pearl wool before shipping.
Timely Delivery Time with Reliable Quality
Since we are factory which can controlled the delivery time more effective and timely, also to make sure the product with reliable quality
Our Services
1. We can offer the quotation after received inquiry within 24 hours.
2. OEM and ODM all acceptable.
3. No MOQ required. We can submit the sample to client for ref before the order to proceed.
4. Sample lead-time is 3.-5 days. Bulk lead-time is 10-15days.
5.Warranty:
Full warranty 2 years: We will provide Full three years’ guarantee for free that product is problem caused by quality. (Note: Client should pay the freight to send product back)
When you use our product and have a failure, please contact with us. Please don't take it apart and repair it by yourself, Otherwise, we are not responsible for warranty.
FAQ
Q: Are you a factory or trading company?
A: Yes, we are manufacturer in GuangDong, China, welcome to visit our factory.
Q: What is your MOQ?
A: we don’t have MOQ requirements.
Q: May I get some discount?
A: Sure. Discount is available if have a certain quantities of order .
Q: If your products have inspected and packing well before shipped.
A： Yes. Our product will do 100% inspection and packed with pearl wool each one separately before shipped.
Q: How can I get my goods?
A: We usually ship the goods by DHL, UPS, FedEx, TNT, etc. It’s up to our clients required.
Q: When can I get them?
A: Sample lead-time 3-5days. The bulk production lead-time is around 10-15days.
General speaking, all depend on order quantities and if have enough stock material. We will arrange to make production ASAP when the order final confirmed.
