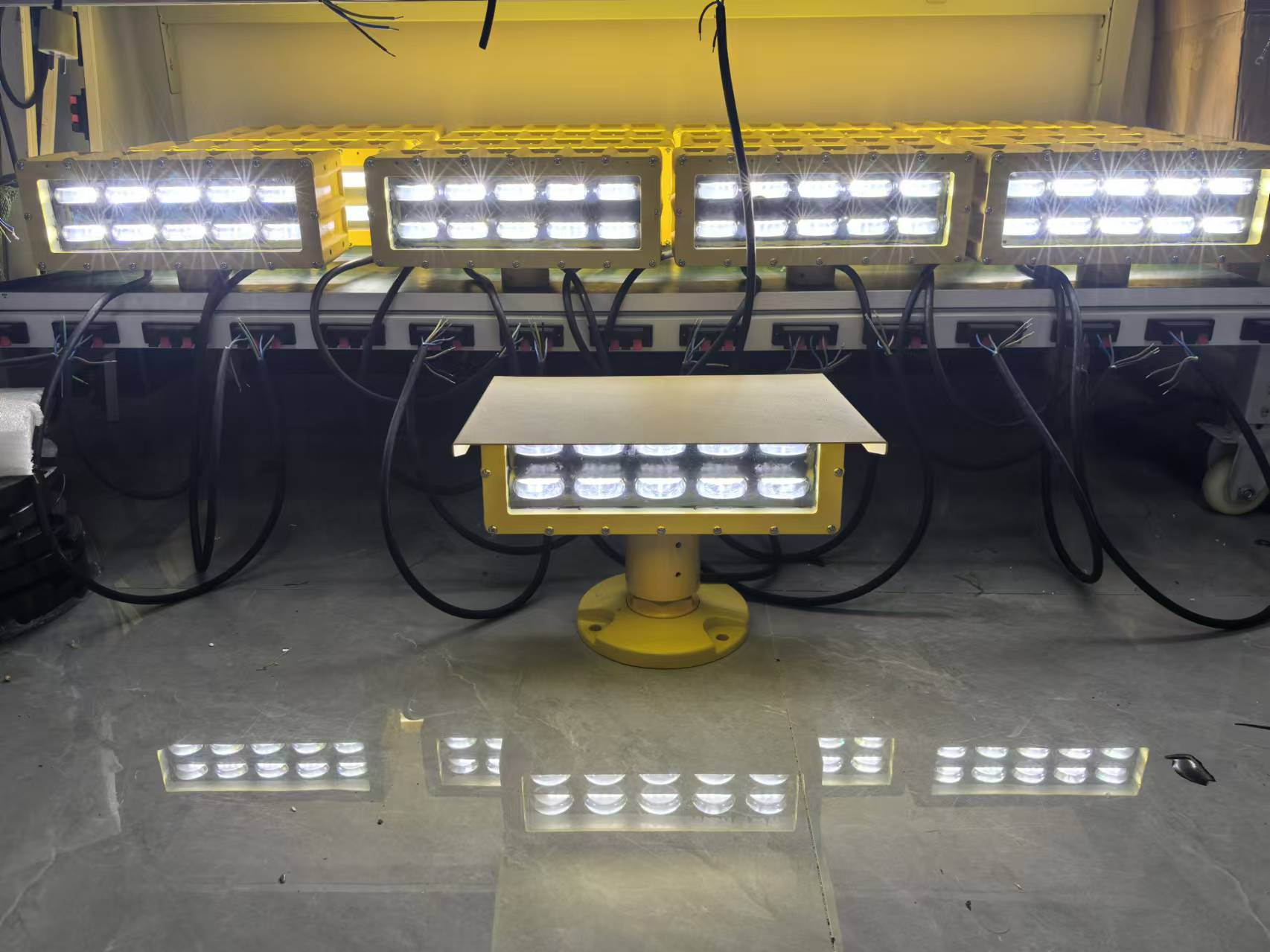

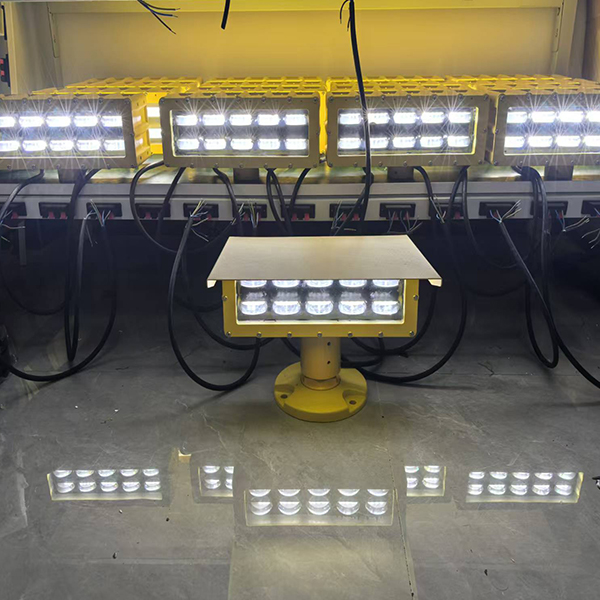

Helipad Flood Light
1. This Helipad Flood Light adopts full sealed aluminum shell. Protection standard is IP65. Light source uses LED with high-efficiency and low attenuation, which has illumination uniformity angle.
2. Light source adopts the international advanced CREE LED featuring low power consumption, high efficiency and light source lifespan reaching 100,000 hr;
3. Helipad Flood Light-The angle more accurate, and the light distribution curve flux is more reasonable, and in front have the lens hood, it could reduce the glare influence to the pilot effectively.
Helipad Dimmable Flood light
1.1Technical Parameters
The following parameters are obtained under normal temperature test. (25℃)
Item of Test | Parameters |
Model | ZHT-018 |
Helipad Flood Light Structure Parameter | Nominal Dimension | 147mm×315mm×382mm |
Material of Lamp Panel | Aluminum Die Casting |
Material of lens | Glass |
Rated Power | 100W |
Electrical Parameter | Input Voltage | AC100-265V |
Light source | LED |
Light color | White |
Operating mode | Steady burning |
Operating mode | Function | This product is vertically installed, transmits unidirectional white light, available for floodlight of various surface heliports, elevated heliports or large platform heliports, enable pilots to land safely. |
Operating tem. | -30℃～70℃ |
Helipad Dimmable Flood light Other Parameter | Wind load | 80m/s |
Protection | IP65 |
Weight | 7Kg |
| |
2. Helipad Flood Light -Characteristics of Lamp
1. Helipad Dimmable Flood light is self-developed, Low power consumption.
2. Corrosion resistance, anti-ultraviolet.
3. Helipad Dimmable Flood light With lightning protection function.
