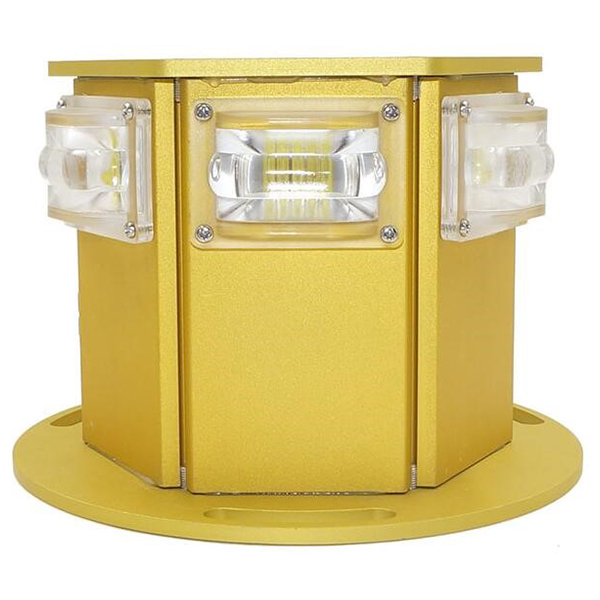

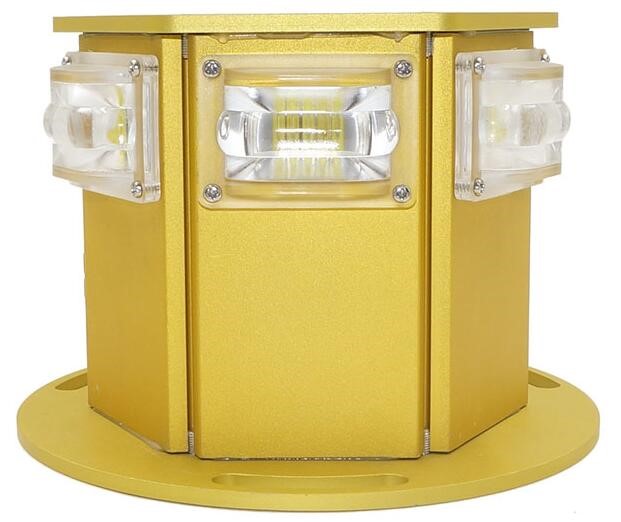

Helipad Beacon Lights
1.2 Technical Parameters
The following parameters are obtained under normal temperature test. (25℃)
Item of Test | Parameters |
Helipad beacon Model
| SPL-008 |
Structure Parameter | Nominal Dimension
| Φ190×132mm |
Installation Dimension | SEE BELOW |
Material of Lamp Panel
| Aluminum Die Casting |
Material of Cover
| AL |
Electrical Parameter | Rated Power
| ≤50W |
Input Voltage
| AC100V-250V |
Light source | LED |
Light color | White |
Effective light intensity(cd) | ≥2500cd |
Operating mode
| Operating mode
| 2-4 flashes/min |
Function
| Helipad beacon lights is a general product for various heliports or aprons, install it in a heliport or a nearby elevated position, it radiates full directional white flashing light signal in the night or low visibility daytime as a guidance in a far distance, it is vital for a pilot under the circumstance of difficulties in identifying. |
Other Parameter | Operating tem.
| -40～+55℃ |
Wind load①
| 80m/s |
Protection
| IP65 |
Weight | 3.2Kg |
2. Helipad beacon Characteristics
1. Low power consumption, professional flash switch.
2. Helipad Beacon with Corrosion resistance, anti-ultraviolet.
3. With lightning protection function.
4. Helipad Beacon Lights is self-developed, with self-patent for optics and new product experiment;
5. The housing adopts integrated die-casting aluminium, with super performance of heat sinking and sealing;
6. The optical module of this product adopts reflex housing, high efficiency of light gathering, no extra scattered light pollution;
7. Helipad beacon lights adopts high power Led light source, can operate continuously over 50000H, energy saving, environment protection, long life;
3.2 heliport beacon Instruction
a) Please read carefully the product specification before using the driver to make sure the operation environment can meet the requirement as per the specification.
b) While connecting the tube to the power, please make sure the switch is “off”.
c) Do not disassemble the lamp by yourself.
4. Helipad beacon Lights Maintenance
4.1 keep every screw in tight
4.2 keep the light OFF when not using
FAQ
Q: Are you a factory or trading company?
A: Yes, we are manufacturer in GuangDong, China, welcome to visit our factory.
Q: What is your MOQ?
A: we don’t have MOQ requirements.
Q: May I get some discount?
A: Sure. Discount is available if have a certain quantities of order .
Q: If your products have inspected and packing well before shipped.
A： Yes. Our product will do 100% inspection and packed with pearl wool each one separately before shipped.
Q: How can I get my goods?
A: We usually ship the goods by DHL, UPS, FedEx, TNT, etc. It’s up to our clients required.
Q: When can I get them?
A: Sample lead-time 3-5days. The bulk production lead-time is around 10-15days.
General speaking, all depend on order quantities and if have enough stock material. We will arrange to make production ASAP when the order final confirmed.
