1 Technical Parameters
The following parameters are obtained under normal temperature test. (25℃)
Item of Test | Parameters |

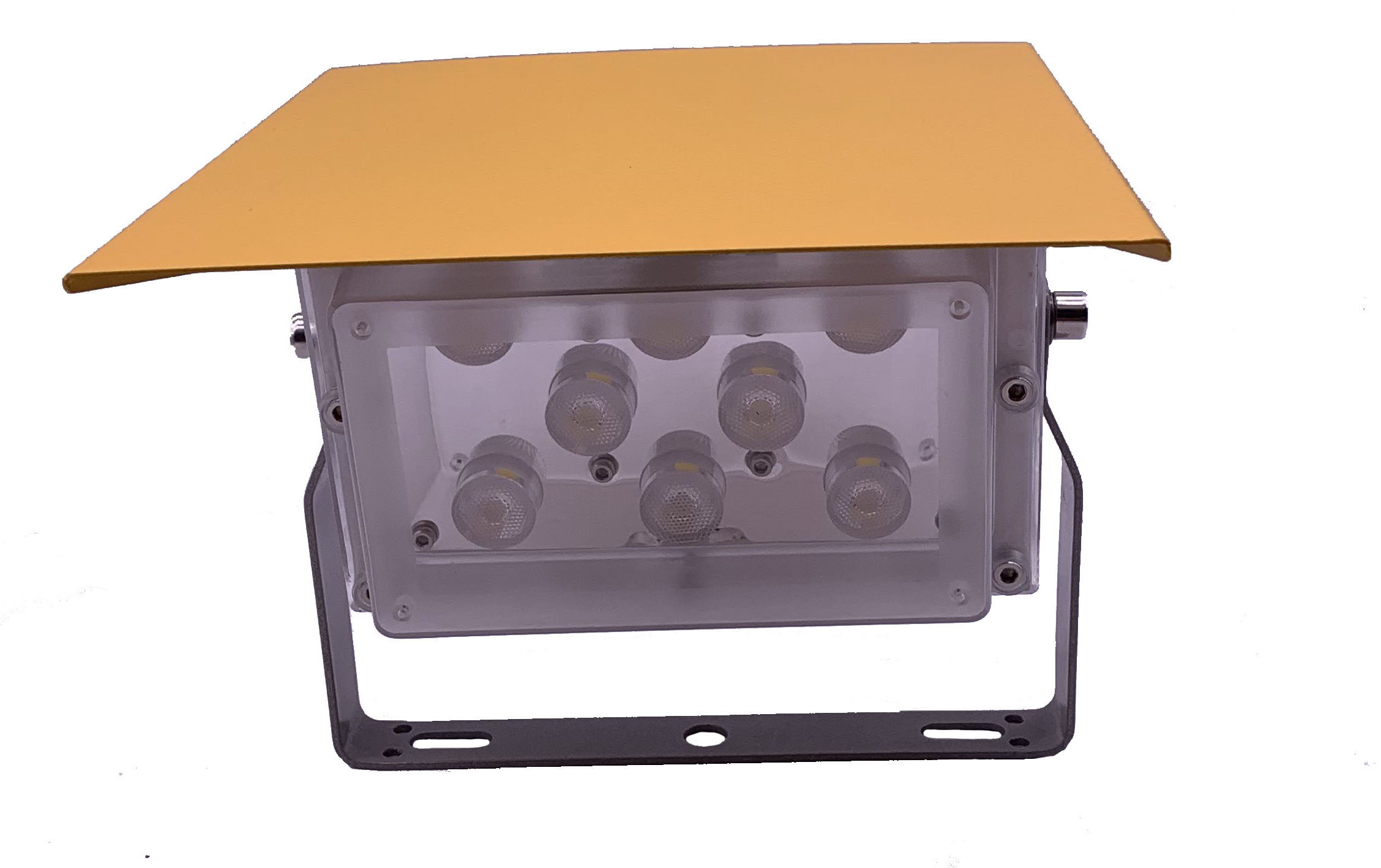

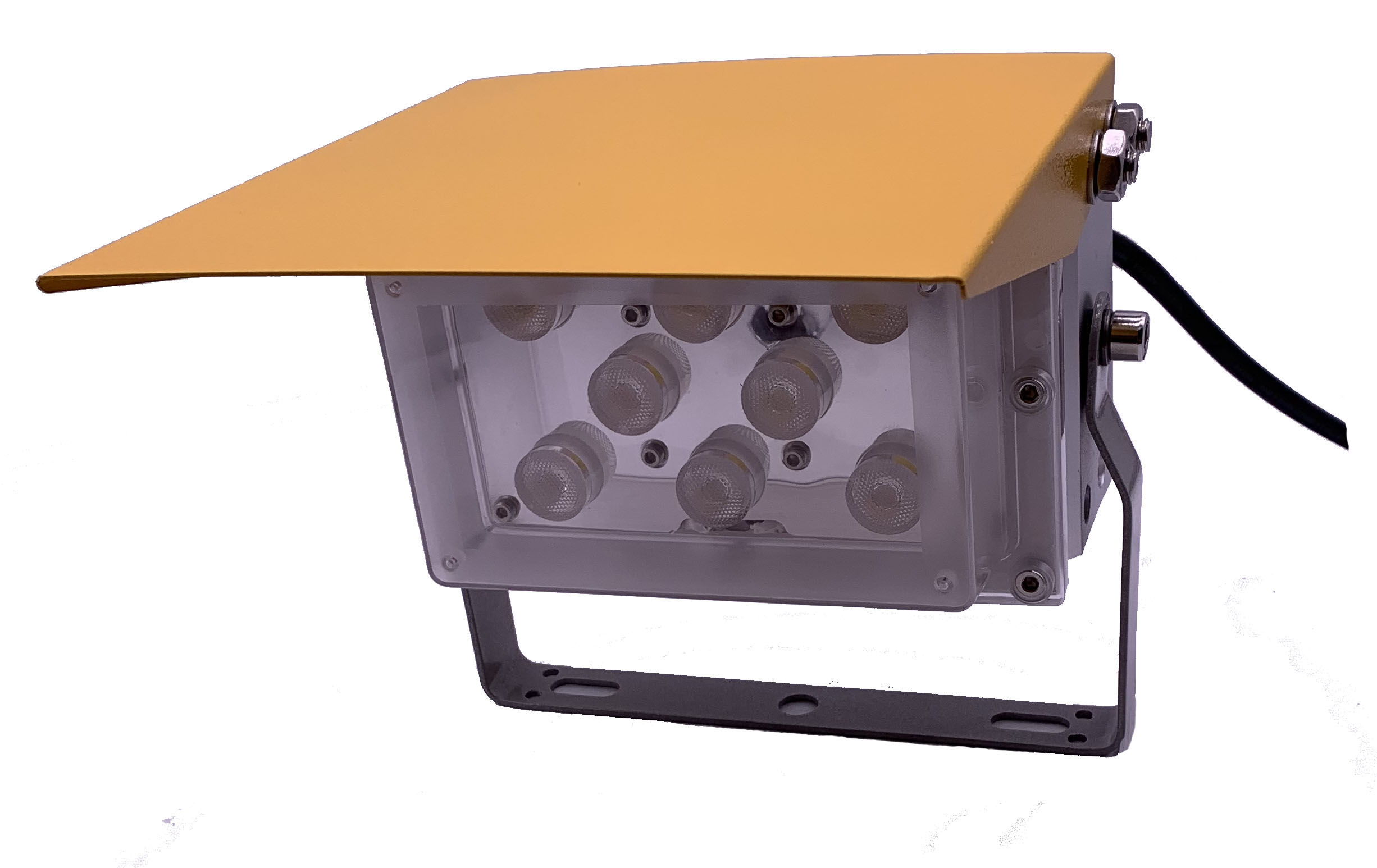

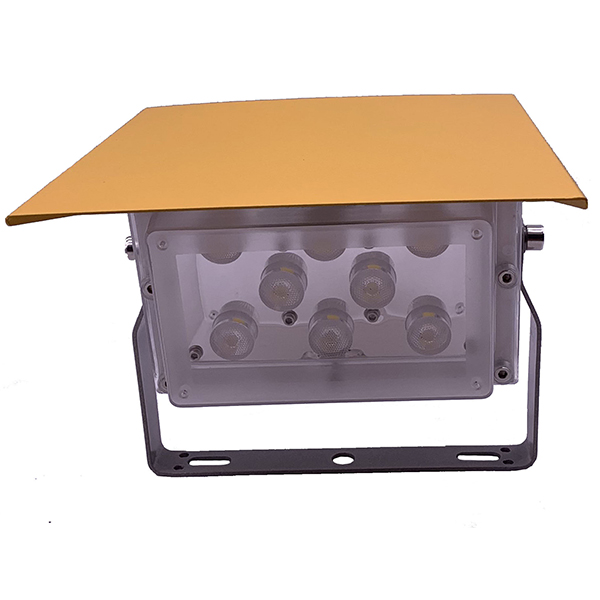

Helipad Flood Light Model | SPL-018 |
Structure Parameter | Nominal Dimension | 154mm×108mm×104mm |
Installation Dimension | 125mm-M8×3 |
Material of Lamp Panel | Aluminum Die Casting |
Material of lens | PC |
Electrical Parameter | Rated Power | 45W |
Input Voltage | AC100-265V |
Light source | LED |
Light color | White |
Operating mode | Operating mode | Steady burning |
Function | This product is vertically installed, transmits unidirectional white light, available for floodlight of various surface heliports, elevated heliports or large platform heliports, enable pilots to land safely. |
Other Parameter | Operating tem. | -30℃～70℃ |
Wind load | 80m/s |
Protection | IP65 |
Weight | 1.8Kg |
2. Characteristics of Lamp
1. Low power consumption, professional flash switch.
2. Corrosion resistance, anti-ultraviolet.
3. With lightning protection function.
4. This helipad flood light is self-developed, with self-patent for optics and new product experiment;
5. The helipad flood light housing adopts integrated die-casting aluminium, with super performance of heat sinking and sealing;
6. The optical module of this product adopts reflex housing, high efficiency of light gathering, no extra scattered light pollution;
7. This helipad flood light adopts high power Led light source, can operate continuously over 50000H, energy saving, environment protection, long life;
3. Installation
3.1 Schematic Diagram
3.2 Instruction
a) Please read carefully the product specification before using the driver to make sure the operation environment can meet the requirement as per the specification.
。
b) While connecting the tube to the power, please make sure the switch is “off”.
c) Do not disassemble the helipad flood light by yourself.
4. Maintenance
4.1 keep every screw in tight
4.2 keep the light OFF when not using.
