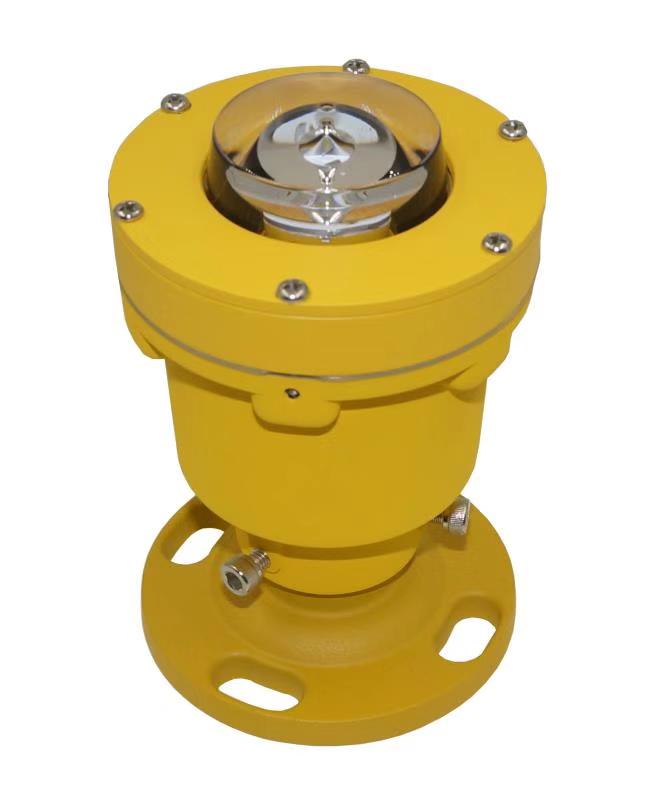

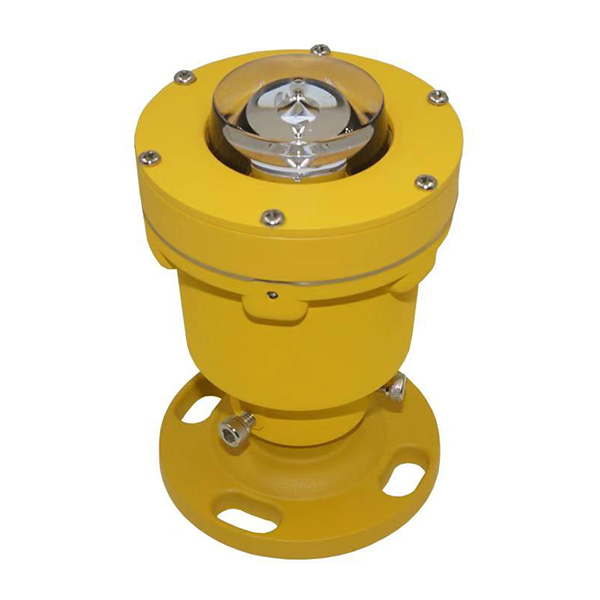

Helipad SURFACE MOUNTED PERIMETER LIGHT
Heliport elevated perimeter light is vertically installed along touchdown and liftoff area edge, it can radiate steady burning green light at all direction in the night or low visibility daytime, to identify the borders of touchdown and liftoff area edge, enable pilots to land safely.
Helipad Lighting Solutions: Precision, Safety, and Versatility
Our advanced helipad lighting systems are engineered to deliver unmatched safety, durability, and adaptability for aviation environments. The Helipad SURFACE MOUNTED PERIMETER LIGHT ensures clear boundary definition with its low-profile, rugged design, ideal for flush installation on concrete or asphalt surfaces. Its corrosion-resistant housing and high-intensity LED output guarantee visibility in all weather conditions. For elevated applications, the Heliport Elevated Perimeter Light offers versatile mounting options, providing 360° coverage to mark helipad edges on rooftops or uneven terrain while maintaining FAA/ICAO compliance.
The Heliport Surface Mounted Perimeter Light combines seamless integration with energy efficiency, featuring a maintenance-free design and customizable flash patterns for enhanced situational awareness. Complementing these solutions, our Helipad Dimmable Flood Lights empower operators with adjustable brightness control, optimizing illumination for day/night operations or low-visibility scenarios without compromising pilot comfort.
All products prioritize longevity and eco-friendliness, utilizing solar-ready technology and shatterproof lenses. Whether for emergency medical pads, offshore platforms, or urban heliports, our lighting systems ensure regulatory adherence, reduce operational costs, and elevate safety standards for seamless 24/7 airfield operations.
Technical Parameters
The following parameters are obtained under normal temperature test. (25℃)
Heliport elevated perimeter light Item of Test | Parameters |
Heliport elevated perimeter light Model | SPL-020 |
Structure Parameter | Nominal Dimension | Φ104×150mm |
Installation Dimension | Plssee below. |
Material of Lamp Panel | Aluminum Die Casting |
Material of Cover | PC |
Electrical Parameter | Rated Power | 5W |
Input Voltage | AC 100-250V |
Light source | LED |
Light color | green |
Effective light intensity(cd) | ≥5 |
Operating mode | Operating mode | Steady burning |
Function | Heliport surface mounted perimeter light is vertically installed along touchdown and liftoff area edge, it can radiate steady burning green light at all direction in the night or low visibility daytime, to identify the borders of touchdown and liftoff area edge, enable pilots to land safely. |
Other Parameter | Operating tem. | -40～+55℃ |
Wind load① | 80m/s |
Protection | IP66 |
Net Weight | 0.88Kg |
2. Characteristics of Lamp
1. Helipad SURFACE MOUNTED PERIMETER LIGHT with Corrosion resistance, anti-ultraviolet.
2. International advanced cold light source, low power consumption, high brightness, the service life is up to 100000 hours.
3. Helipad SURFACE MOUNTED PERIMETER LIGHT use of PC material, designed for impact resistance.
4. With lightning protection function.
5. Heliport SURFACE MOUNTED PERIMETER LIGHT is self-developed, with new product experiment;
6. Heliport elevated perimeter light housing adopts integrated die-casting aluminium, with super performance of heat sinking and sealing;
7. The optical module of this Helipad SURFACE MOUNTED PERIMETER LIGHT adopts reflex housing, high efficiency of light gathering, no extra scattered light pollution;
a) Please read carefully the product specification before using the driver to make sure the operation
environment can meet the requirement as per the specification.
b) While connecting the tube to the power, please make sure the switch is “OFF”.
c) Do not disassemble the lamp by yourself.
4. helicopter landing pad lights Maintenance
4.1 keep every screw in tight
4.2 keep the light OFF when not using
FAQ
Q: Are you a factory or trading company?
A: Yes, we are manufacturer in GuangDong, China, welcome to visit our factory.
Q: What is your MOQ?
A: we don’t have MOQ requirements.
Q: May I get some discount?
A: Sure. Discount is available if have a certain quantities of order .
Q: If your products have inspected and packing well before shipped.
A： Yes. Our product will do 100% inspection and packed with pearl wool each one separately before shipped.
Q: How can I get my goods?
A: We usually ship the goods by DHL, UPS, FedEx, TNT, etc. It’s up to our clients required.
Q: When can I get them?
A: Sample lead-time 3-5days. The bulk production lead-time is around 10-15days.
General speaking, all depend on order quantities and if have enough stock material. We will arrange to make production ASAP when the order final confirmed.
