Internally Illuminated solar powered heliport wind cone
Heliport Windcone provide visual indication of wind direction and velocity for pilots on small airfields, heliports, vertiports and as supplemental wind indicators near runway touchdown areas on larger airfields.
Innovative Windcone Solutions for Aviation Safety & Sustainability
Our windcone series redefines reliability across heliports and airports, merging cutting-edge technology with eco-conscious design. The Heliport Windcone sets the standard with FAA/ICAO-compliant visibility, featuring high-tenacity polyester fabric and aviation-grade aluminum frames resistant to 120-knot winds. For off-grid installations, the Helipad Solar powered windcone delivers 24/7 operation via monocrystalline solar panels and deep-cycle batteries, eliminating wiring needs while reducing carbon footprints.
The Heliport lighted windcone with solar powered integrates dual-mode LED illumination (steady/flashing) for night operations, automatically adjusting brightness via ambient light sensors. Its modular design allows rapid pole-top mounting on rooftops or portable bases for emergency sites. Meanwhile, the Airport internally lighted windcone offers superior terminal-area guidance with seamless internal LED backlighting, ensuring 360° readability in fog or darkness. Both models boast IP67 waterproofing and self-cleaning coatings to combat sand/salt corrosion.
Key advantages unifying all models:
Instant Deployment: Tool-free assembly (<15 mins) with universal ICAO/IATA-compliant color codes.
Extreme Durability: MIL-STD-810H-certified against UV degradation, ice loads, and chemical exposure.
Smart Maintenance: Wireless fault alerts (battery/LED status) via IoT-enabled units.
Ideal for hospitals, offshore rigs, and disaster-response hubs, our windcones ensure unmatched safety with minimal lifecycle costs.
Heliport Windcone Lighted vane can indicate the wind direction in the ultimate approach and take off area and make a general indication on the wind speed. For the installation locate, it must not be intervened by the nearby object or airflow blew by the rotary wing and can be seen from the helicopter from the air.
Heliport Wind Cone
Advantages:
·Available in 304 stainless steel or 316 made of our heliport wind cone.
·heliport windcone can have 1.5 meters to 7 meters pole in height available.
· Heliport Windcone can Customized “short type”for customer connect with their
own pole, save freight cost.
·This Heliport Windcone Available in different sizes for sleeve.
· No obstruction for smooth rotation due to nice internal lit design of our helipad windcone.
Environmental:
· Operating at -40 ℃to 60 ℃ .
·Wind speed: max load design 260kph.
Heliport Wind Cone
Specifications
· Light Source: LED
· Emitting Colour: White
· Operating Voltage 12VDC
· Service Life of LED: >100,000 hours
· Circuit Protection: Integrated
· Solar Module Type Mono crytilline Silicone, 50W
· Battery Type ：30AH lithium iron phosphate battery
· Autonomy (hours) 120 Hours (Optional)
· Ambient Temperature (°C): -55~70
· Humidity: 10~90%
· Wind Speed: 80 m/s
Heliport Windcone with windsock is white/red.
The Heliport Wind Cone pole can be painted with UV protected Red/white stripes paint or all Orange color. And the paint is corrosion resistant . Heliport windcone Pole height can be customized.
Heliport Wind Cone Perfect for small airports, heliports and vertiports

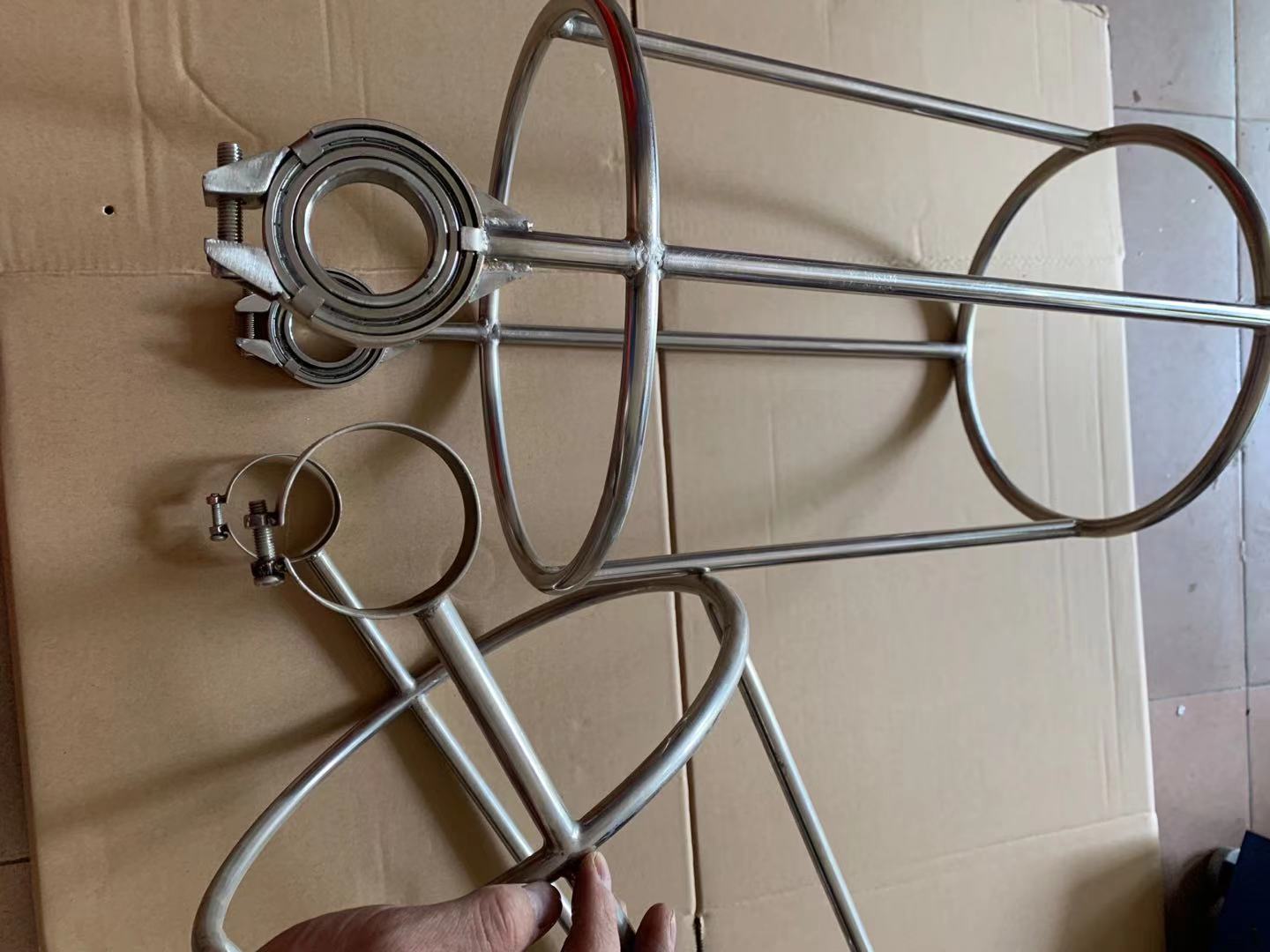

• Pre-assembled bearings and one-piece welded aluminum basket, and center hinged pole for easy installation

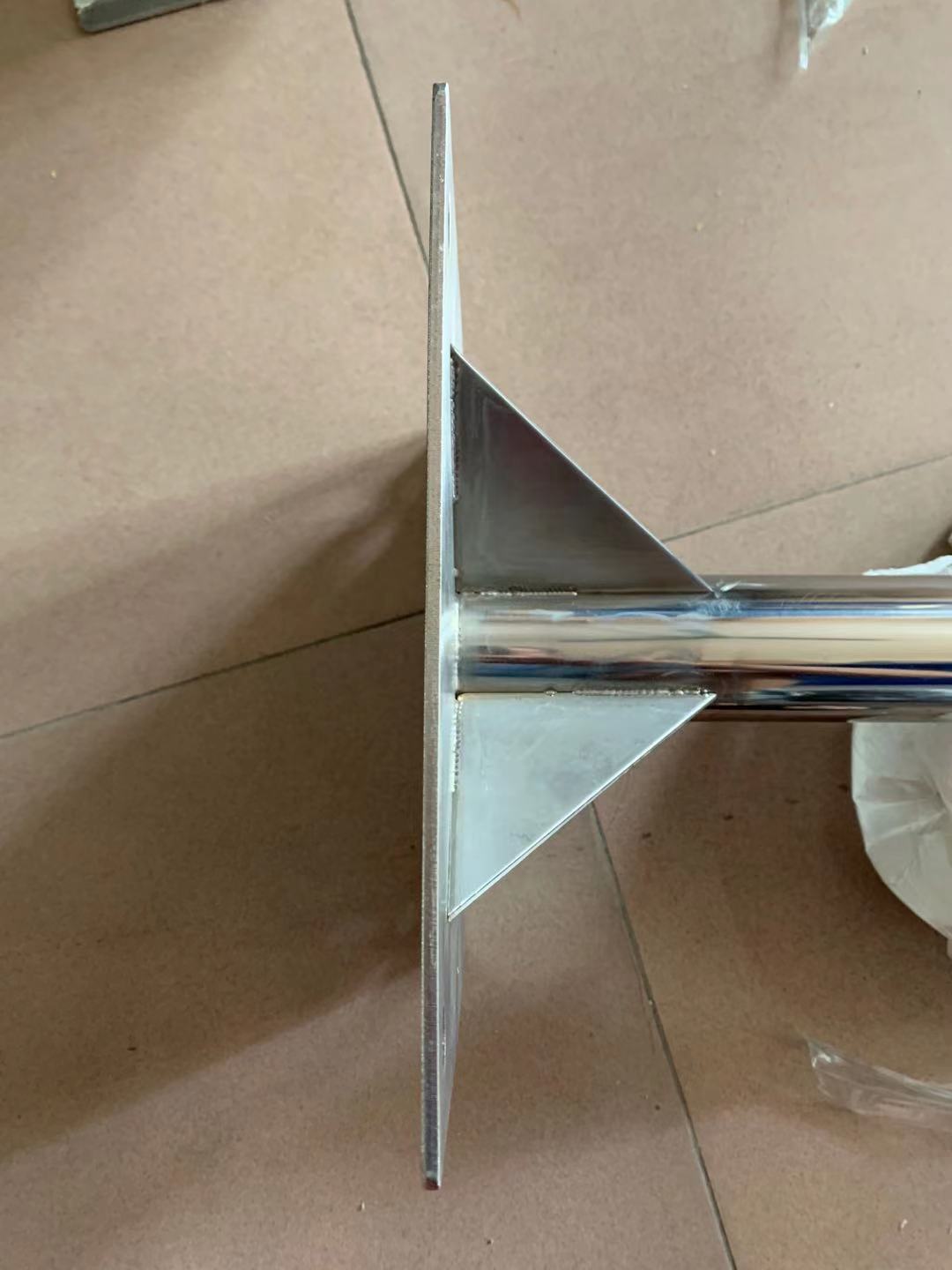

• Mounting options include: roof, wall, floor flange.
• Our heliport Windcone Available externally lighted, internally lighted, or unlighted

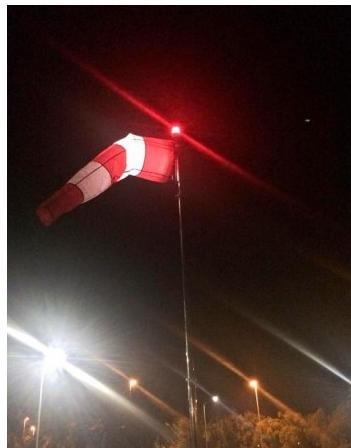

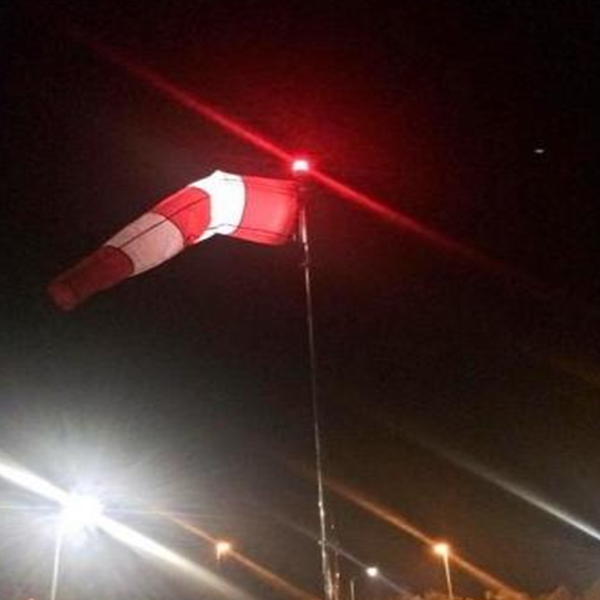

Heliport Windcone lighted
Why Us
Professional Manufacture of Navigational Aids Products
SPL with more than 10 years of design and application experience of helipad lighting and obstruction lights in China.
We insist on providing the most up-to-date and cost-effective helipad lighting options and with high quality signal aviation obstruction lights available to our customers.
Advantages
Cost effective, energy efficient Helipad Lighting and aviation obstruction lights solutions.
Designed ,Manufactured. We do it All.
Self-contained solar powered units for ease of installation.
Optional control systems available.

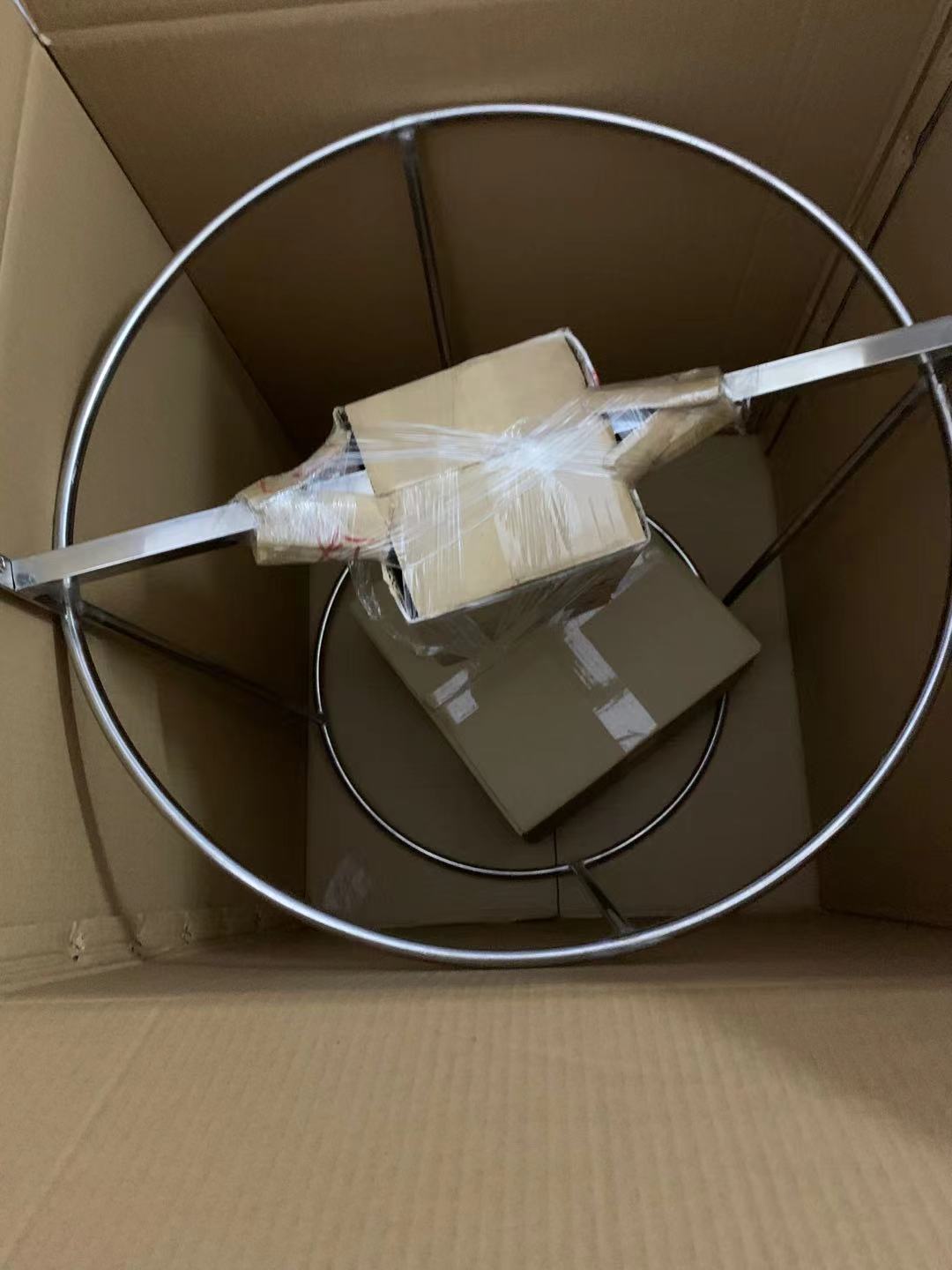

100% Testing and Inspection .Fully packed with pearl wool before shipping.
Timely Delivery Time with Reliable Quality
Since we are factory which can controlled the delivery time more effective and timely, also to make sure the product with reliable quality
Our Services
1. We can offer the quotation after received inquiry within 24 hours.
2. OEM and ODM all acceptable.
3. No MOQ required. We can submit the sample to client for ref before the order to proceed.
4. Sample lead-time is 3.-5 days. Bulk lead-time is 10-15days.
5.Warranty:
Full warranty 2 years: We will provide Full three years’ guarantee for free that product is problem caused by quality. (Note: Client should pay the freight to send product back)
When you use our product and have a failure, please contact with us. Please don't take it apart and repair it by yourself, Otherwise, we are not responsible for warranty.
FAQ
Q: Are you a factory or trading company?
A: Yes, we are manufacturer in GuangDong, China, welcome to visit our factory.
Q: What is your MOQ?
A: we don’t have MOQ requirements.
Q: May I get some discount?
A: Sure. Discount is available if have a certain quantities of order .
Q: If your products have inspected and packing well before shipped.
A： Yes. Our product will do 100% inspection and packed with pearl wool each one separately before shipped.
Q: How can I get my goods?
A: We usually ship the goods by DHL, UPS, FedEx, TNT, etc. It’s up to our clients required.
Q: When can I get them?
A: Sample lead-time 3-5days. The bulk production lead-time is around 10-15days.
General speaking, all depend on order quantities and if have enough stock material. We will arrange to make production ASAP when the order final confirmed.
