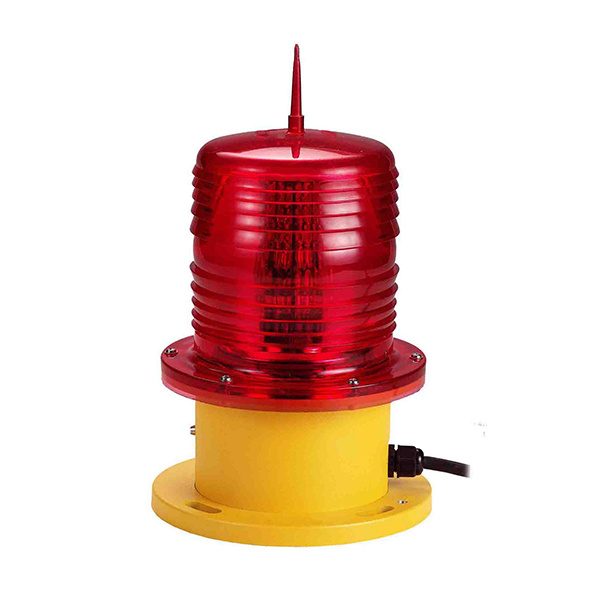

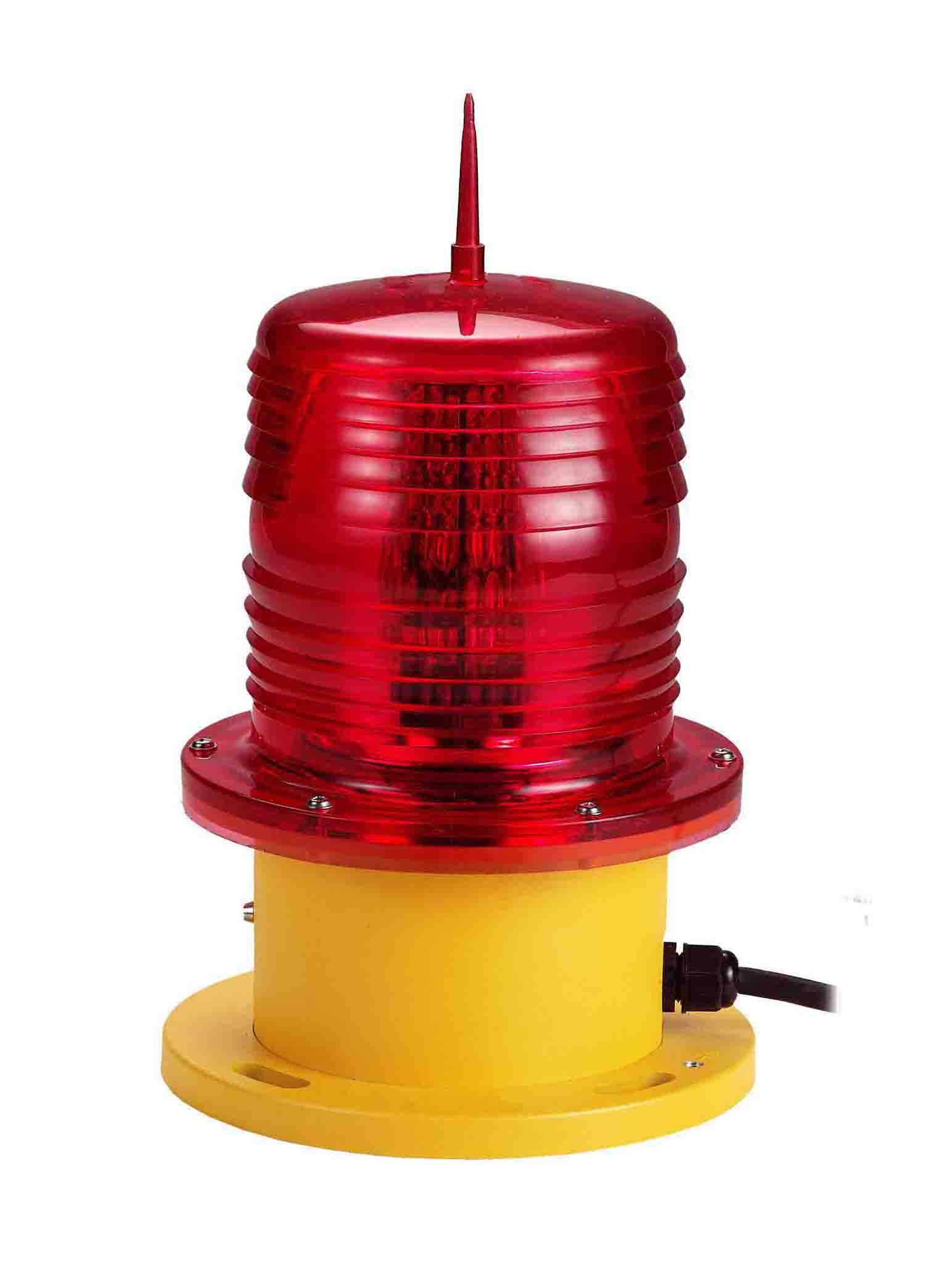

SPL-202D/B
Low Intensity Type B Aviation Obstruction Light
SPL-202D/B Low Intensity Type B Aviation Obstruction Light is red constant version aviation obstruction light. For the obstruction whose height is lower than 45 meters, this light could be used there solely. For the obstructions whose height is higher than 45 meters, this light could be used together with aviation obstruction lights with higher light intensity to mark the outline and play an aviation warning role.
Low-intensity Red Aviation Obstruction Light Key features:
1. Light shade adopts PC. It has a small space structure which is especially suitable to steel towers.
2. It is high ability of impact resistance (IZ0D gap impact resistance rate: 90), hot resistance (can bare high temperature up to 130℃), high efficiency light transmission up to 90%, anti-UV, aging resistance.
3. House of the light adopts aluminum alloy painted by spraying plastics finish which is light, good ability of releasing heat, waterproof, corrosion resistance etc.. obstruction light for tower.
4. Light source adopts LED which is with long lifespan up to 100,000hrs, lower power consumption and high efficiency.obstacle light for the high building.obstruction light for the high tower.
5. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment.
Low-intensity Red Aviation Obstruction Light Model Introduction:
SPL-202D/B : single light, with photocell, no requirement of additional controller, When the background luminance is lower than 500cd/㎡, the light will be on automatically.
Low-intensity Red Aviation Obstruction Light Main Tech Parameter:
Item | Parameter |
Low-intensity Red Aviation Obstruction Light Model | SPL-202D/B |
FAA type | L810 |
Operating voltage | 220VAC/48VDC |
Power consumption | ≤7W |
Flashing frequency | Constant |
Effective light intensity | ≥32.5cd |
Lifespan of light source | 100,000hr. |
Emitting color | Red |
Ingress protection | IP65 |
Photocell sensitivity | 50-500cd/㎡ |
Operating temperature | -40℃-60℃ |
Wind load | 80m/s |
Net weight | 2.2kg |
Overall size(mm) | 180*180*280 |
Installation size(mm) | 108*108*M10 |
Timely Delivery Time with Reliable Quality
Since we are factory which can controlled the delivery time more effective and timely, also to make sure the product with reliable quality
Our Services
1. We can offer the quotation after received inquiry within 24 hours.
2. OEM and ODM all acceptable.
3. No MOQ required. We can submit the sample to client for ref before the order to proceed.
4. Sample lead-time is 3.-5 days. Bulk lead-time is 10-15days.
5.Warranty:
Full warranty 2 years: We will provide Full three years’ guarantee for free that product is problem caused by quality. (Note: Client should pay the freight to send product back)
When you use our product and have a failure, please contact with us. Please don't take it apart and repair it by yourself, Otherwise, we are not responsible for warranty.
