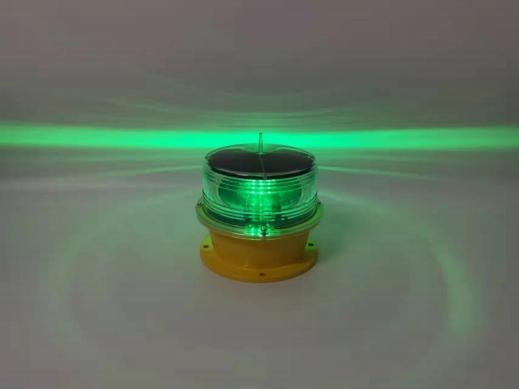

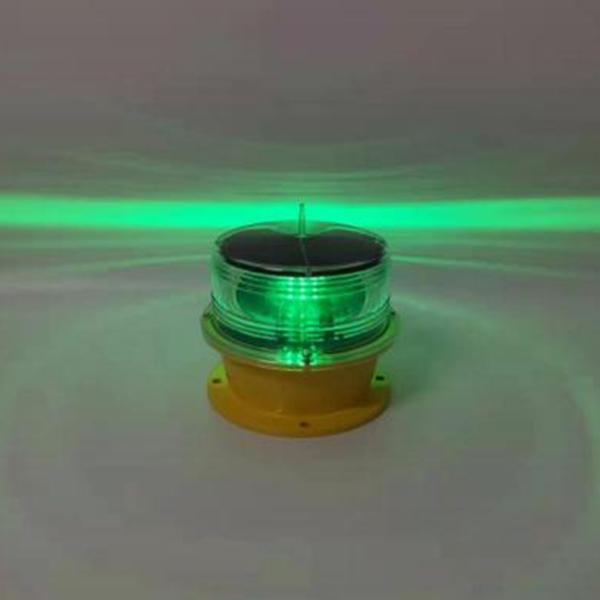

Low-intensity Solar Aviation Obstruction Light
1 Low-intensity Solar Aviation Obstruction Light
1.2 Technical Parameters
The following parameters are obtained under normal temperature test. (25℃)
Item of Test | Parameters |
Model | SPL-610 |
Structure Parameter | Nominal Dimension | 162X160mm |
Installation Dimension | SEE ABOVE |
Material of Lamp Panel | Aluminum Die Casting |
Material of Cover | PC |
Electrical Parameter | Visual range | 1-3.7NM |
Input Voltage | DC3.7V/6AH lithium battery |
Solar panel | 3W 6V (monocrystalline Solar panel） |
Light source | LED |
Light color | GREEN |
Effective light intensity(cd) | 30CD |
Operating mode | Operating mode | Steady burning |
Other Parameter | Operating tempt. | -40～+55℃ |
Wind load① | ≥80m/s |
Protection | IP66 |
Weight | 1Kg |
2. Characteristics of Low-intensity Solar Aviation Obstruction Light
1.Corrosion resistance, anti-ultraviolet.
2. International advanced cold light source, low power consumption, high brightness, the service life is up to 100000 hours.
3.The Low-intensity Solar Aviation Obstruction Light use of PC material, designed for impact resistance.
4. With lightning protection function.
5. This product is self-developed, with self-patent for optics and new product experiment;
6. The housing adopts integrated die-casting aluminium, with super performance of heat sinking and sealing;
Why Us
Professional Manufacture of Navigational Aids Products
SPL with more than 10 years of design and application experience of helipad lighting and obstruction lights in China.
We insist on providing the most up-to-date and cost-effective helipad lighting options and with high quality signal aviation obstruction lights available to our customers.
Advantages
Cost effective, energy efficient Helipad Lighting and aviation obstruction lights solutions.
Designed ,Manufactured. We do it All.
Self-contained solar powered units for ease of installation.
Optional control systems available.
100% Testing and Inspection .Fully packed with pearl wool before shipping.
Timely Delivery Time with Reliable Quality
Since we are factory which can controlled the delivery time more effective and timely, also to make sure the product with reliable quality
Our Services
1. We can offer the quotation after received inquiry within 24 hours.
2. OEM and ODM all acceptable.
3. No MOQ required. We can submit the sample to client for ref before the order to proceed.
4. Sample lead-time is 3.-5 days. Bulk lead-time is 10-15days.
5.Warranty:
Full warranty 2 years: We will provide Full three years’ guarantee for free that product is problem caused by quality. (Note: Client should pay the freight to send product back)
When you use our product and have a failure, please contact with us. Please don't take it apart and repair it by yourself, Otherwise, we are not responsible for warranty.
