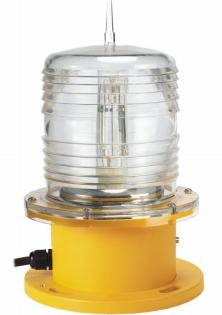

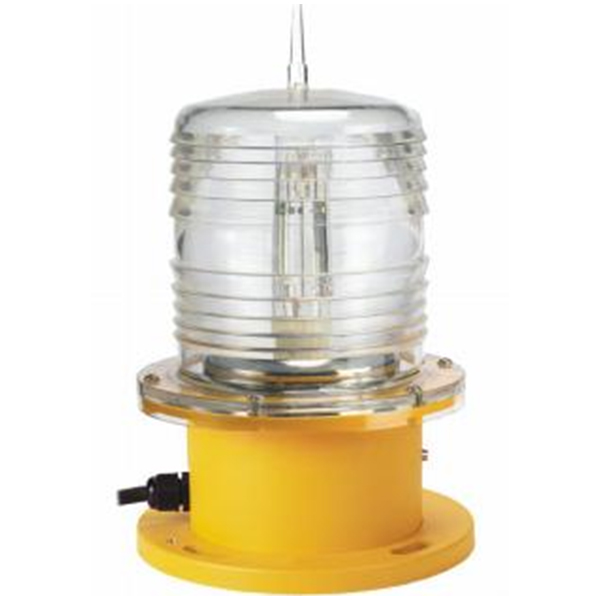

SPL-202Z-A
Medium Intensity Type A Aviation Obstruction Light
SPL-202Z/A Medium Intensity Type A Aviation
Obstrunction Light is a white flashing obstruction light. For
high rise buildings or structures with height between 105 to
150 meters or the area where the background luminance is
comparative strong, this Gold Medium Intensity Type A
Aviation Obstruction Light could be used solely or together
with medium intensity type B aviation obstruction light to
play an aviation warning role there. Also, it could be used
together with high intensity aviation obstruction light on
buildings or structures whose height is higher than 150
meters.
Key Features:
1. Lamp shade of the light adopts PC which is quite high
impact resistance (IZ0D gap impact resistance rate:90), hot
resistance( can bare high temperature up to 130℃), high
efficiency light transmission up to 90%, anti-UV, aging
resistance, ignitability rate UL-94V0.
2. House of the light is made of aluminum alloy and painted by
spraying plastics finish. It is light, good ability heat release,
waterproof, impact resistance, corrosion resistance etc..
3. Light source adopts high quality xenon tube which is high
brightness with light efficiency 100LM/W, low power
consumption, long lifespan up to flash 100,000,000 times.
4. The circuit of the light has surge protection whose lightning
proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh
environment.
Model introduction:
SPL-202Z/A: single light, with photocell, able to work individually, no synchronal flash function
SPL-202Z/AZ: main light, with photocell, able to control multi subsidiary lights for synchronal flash
SPL-202Z/AF: subsidiary light, without photocell, required to work together with main light or controller
Main Tech Parameter:
Item | Parameter |
Model | SPL-202Z/A |
FAA type | L-865/866 |
Operating voltage | 220VAC/48VDC |
Power consumption | ≤40W |
Flashing frequency | 20-60times/min. |
Peak light intensity | Background luminance | Peak light intensity |
>500cd/㎡ | 20000cd±25% |
<50cd/㎡ | 2000cd±25% |
Light source | xenon tube |
Lifespan of light source | 100,000,000 times |
Emitting color | white |
Ingress protection | IP65 |
Operating temperature | -40℃-60℃ |
Wind load | 80m/s |
Net weight | 3.3kg |
Overall size(mm) | ∮ 180*280 |
Installation size(mm) | 108*108*M10 |
